What Is a CPU or GPU Bottleneck? Finding What Limits Gaming Performance

A CPU or GPU bottleneck occurs when one component’s processing rate limits performance in a particular workload. The limiting factor changes with the game scene, resolution, settings, and target FPS, so a hardware combination does not have one fixed bottleneck percentage.

What do the CPU and GPU do in a game?

The central processing unit (CPU) handles work such as game logic, physics and artificial intelligence (AI) calculations, and preparing graphics commands. The graphics processing unit (GPU) uses those commands to render images. Multiple frames and tasks can overlap in a real rendering pipeline, but performance can be limited when either side cannot supply or finish work quickly enough.

A faster GPU does not directly accelerate CPU game logic, and a faster CPU does not remove the GPU cost of high resolution or complex visual effects. Intel’s PC bottleneck guide explains the importance of balancing components for the intended workload.

Why total CPU utilization is not enough

Total CPU utilization combines activity across logical processors. A game’s critical execution thread can reach its practical limit while other cores remain lightly loaded, leaving the overall figure relatively low. Threads can also move between cores, so a CPU limitation does not require one graph to remain at 100% continuously.

Low GPU utilization is not conclusive evidence of an inadequate CPU either. Frame caps, vertical synchronization, menus, waiting, and power or thermal limits can all lower it. Understand logical processors and hardware threads and treat utilization as one piece of evidence.

Control frame limits and test conditions first

1. Choose a repeatable game save, scene, or built-in benchmark. Avoid drawing conclusions from online matches whose scenes and activity vary substantially.
2. Record display resolution, rendering scale, graphics preset, upscaling, frame generation, and FPS limits. Check driver-level limits as well as in-game options.
3. If diagnosis requires temporarily removing a frame cap, record the original setting and restore it afterward. Low utilization may be perfectly normal when the PC already meets the capped target.
4. During actual gameplay, observe GPU load and frequency, per-core CPU activity, temperatures, average FPS, and frame times together. Restore diagnostic setting changes when finished.

When frame generation increases displayed FPS, distinguish rendered frames from generated frames. Results with different frame-generation settings should not be interpreted as a direct comparison of CPU processing throughput.

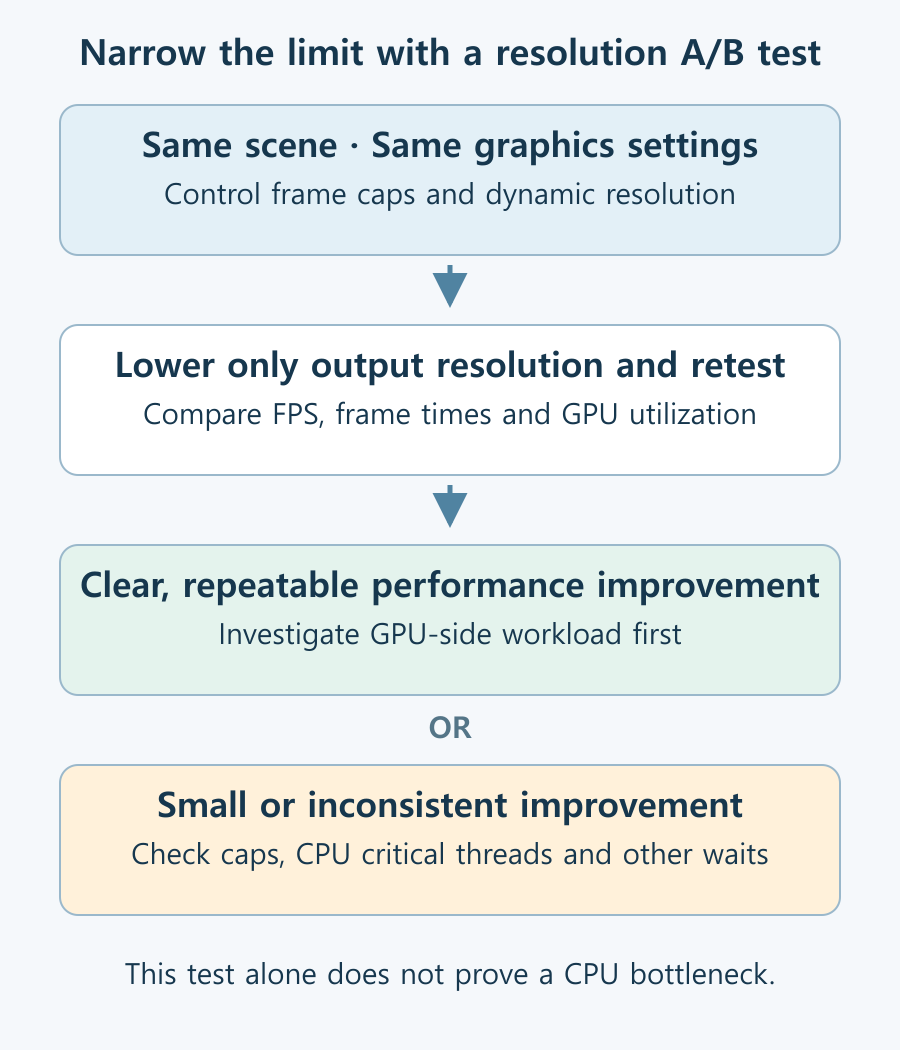

What lowering resolution can tell you

Keep the scene and other conditions constant, then lower only the rendering resolution to reduce GPU pixel workload. A clear FPS improvement suggests that GPU rendering was an important limitation at the original setting. Little improvement is a reason to investigate CPU work, frame caps, and other constraints further.

This is a way to narrow the cause, not a standalone proof. Simultaneously changing object density or view distance can change CPU work too, making the comparison ambiguous. Follow the benchmarking principle of changing one variable at a time.

Not every stutter means the CPU or GPU is too slow

RAM pressure and paging, VRAM pressure and data transfers, shader compilation, storage loading, and background updates can all produce long frames. If average FPS is adequate but individual moments stutter, examine resource behavior at those moments and check the game’s update history or logs.

If clocks fall as temperatures rise, investigate power and thermal limits. With integrated graphics, system memory configuration and transfer rate can also influence graphics performance; review the memory configuration requirements rather than assuming a CPU upgrade is the only answer.

Which component should you upgrade?

If reducing GPU workload reaches your target FPS and increasing visual quality makes performance fall again, that supports considering a GPU upgrade. If reducing GPU workload still fails to reach the target and evidence repeatedly points to CPU processing, consider a CPU and platform upgrade.

Before buying, examine the specific game at a resolution, GPU level, and memory configuration similar to yours. A calculator’s bottleneck percentage is a weaker basis for spending money than a clear target and repeatable evidence of what is limiting your current experience.
